DIY : 24/7 New Water Drip System

Water Changes... do you love doing them? Well I'm tired of the doing water changes every other day on 18+ tanks...

The 24/7 drip system is a constant drip of "new" water and any excess water will overflow out the tank through the drains. Similar to an Overflow filter except it has a much slower flow rate.

Here's how my system works:

Water -> (filter) -> Aged Water Barrel -> Tank -> Overflow -> Drain/Sink/Lawn

----- Aged Water Barrel----

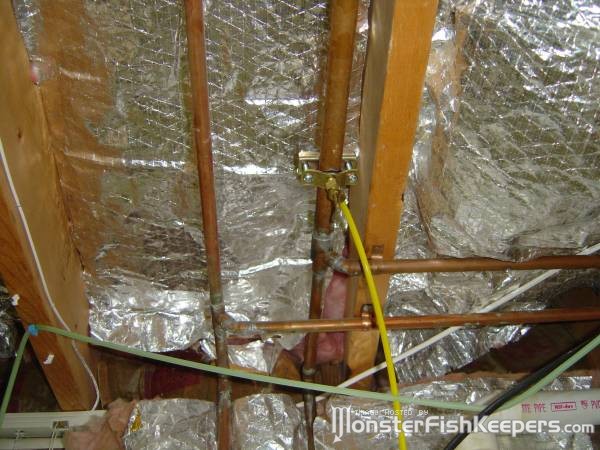

I tap into the cold water pipe :

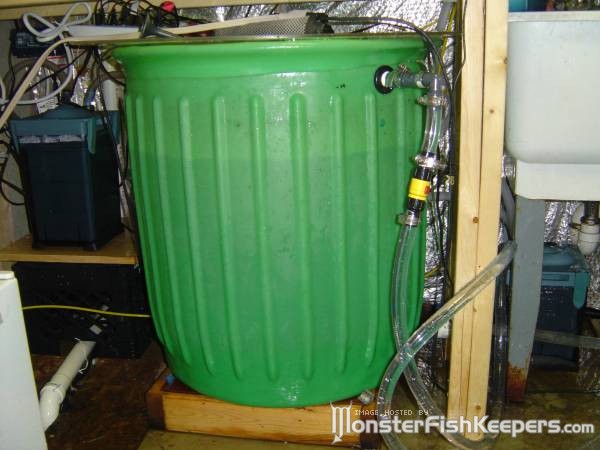

The aged water barrel :

You have to get Float Valve !! or your place will be flooded !

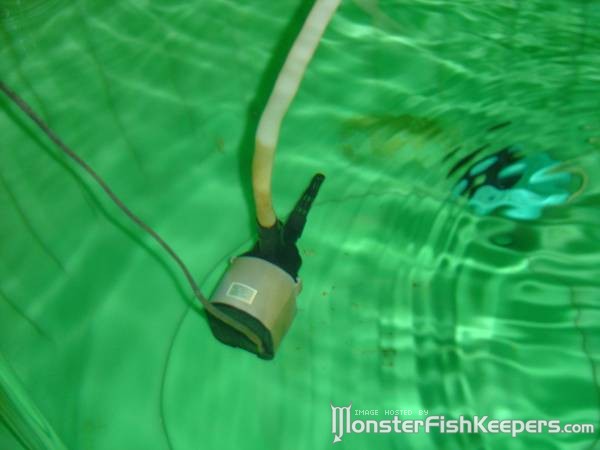

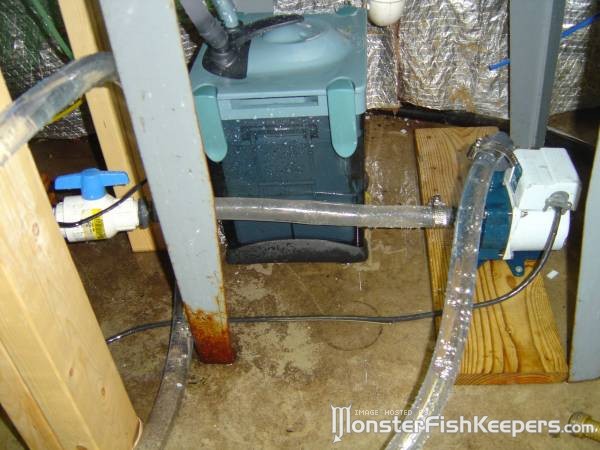

The pump that pumps water into the tanks :

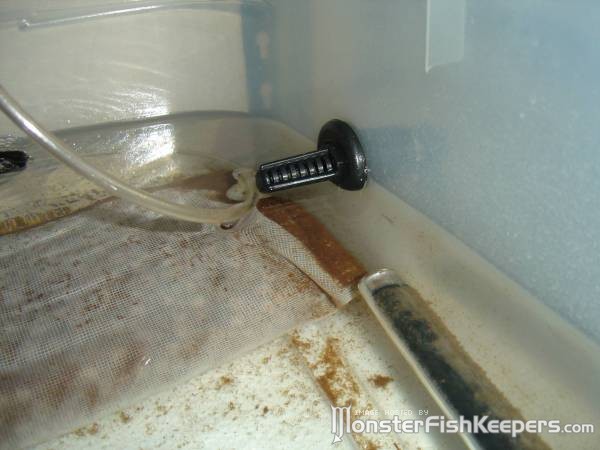

To age the water you must aerate the water 24/7.

I have an air stone in the barrel but I didn't think it was enough, so I added a pump to circulate the water even more.

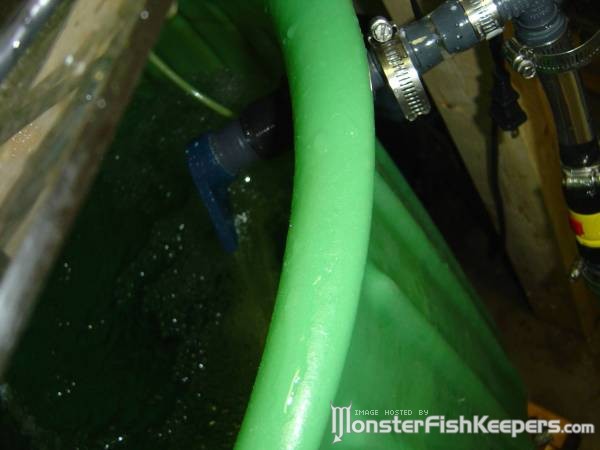

Circulated back in to the barrel :

Spray bar helps spread the water around :

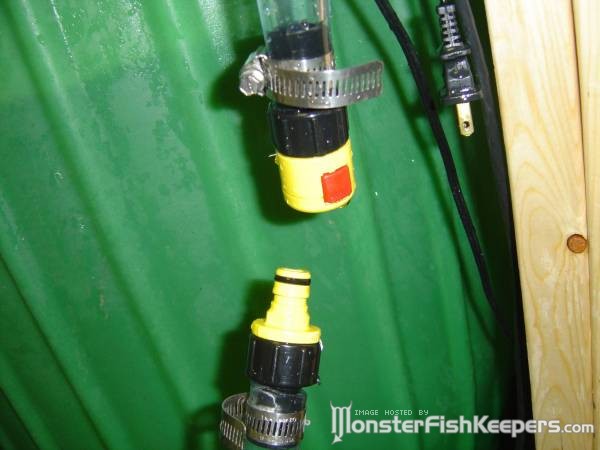

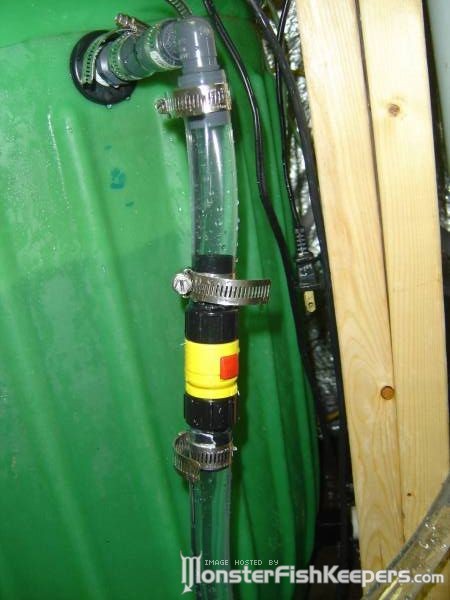

You see the yellow quick disconnect ? Why the quick disconnect ?
It's just incase I need to do a quick water change

----- DRILL TANK----

If you want the water level to be higher, all you have to do is add an extention to allow the water level to rise.

----- NON DRILL TANK----

here is how the overflow works

Here is a DIY version. Its much cheaper and works the same way.

----- How to build a Neoprodigy DIY overflow----

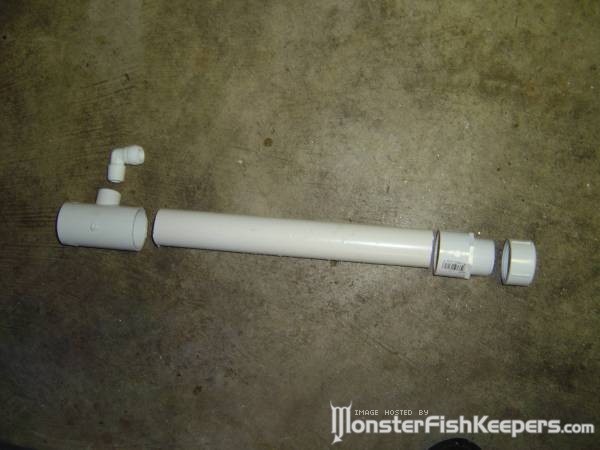

Im using a 1-1/4 pvc pipe :

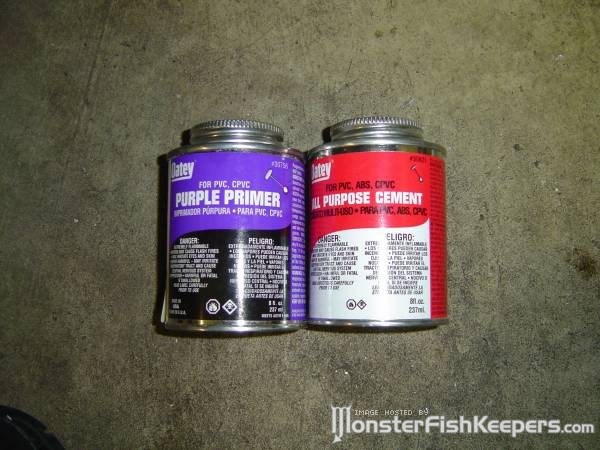

PVC primer and cement :

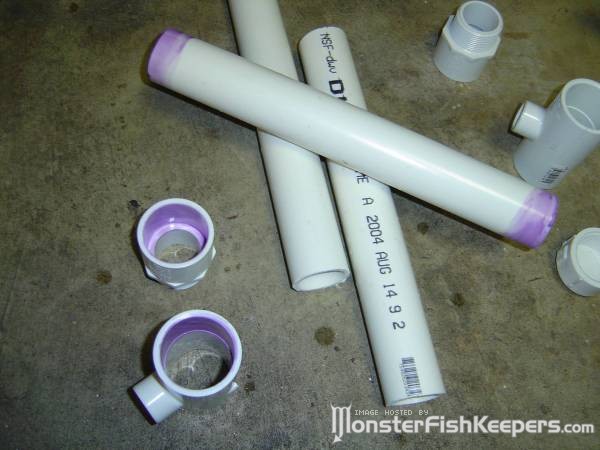

Primer the ends :

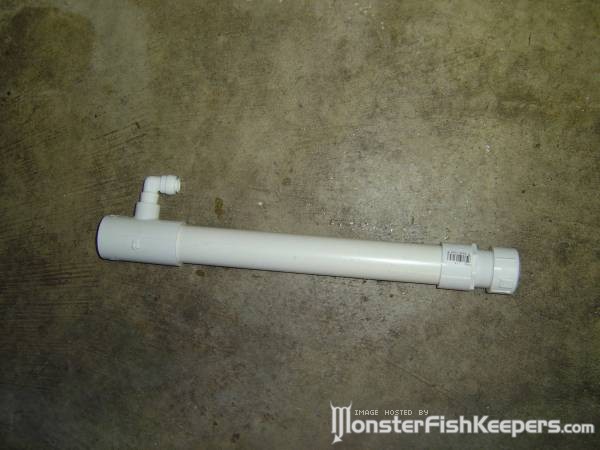

When its all cemented :

----- Installing the drip----

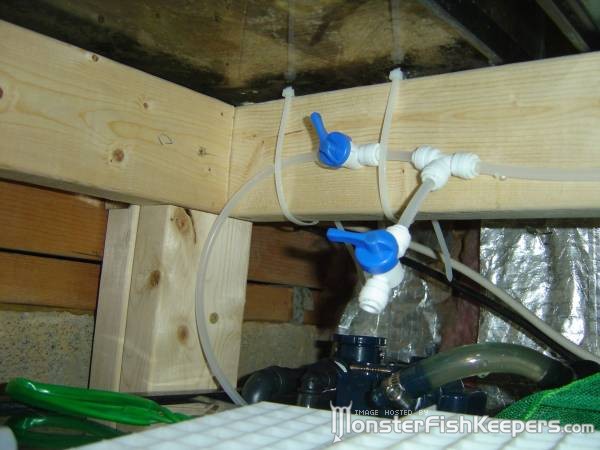

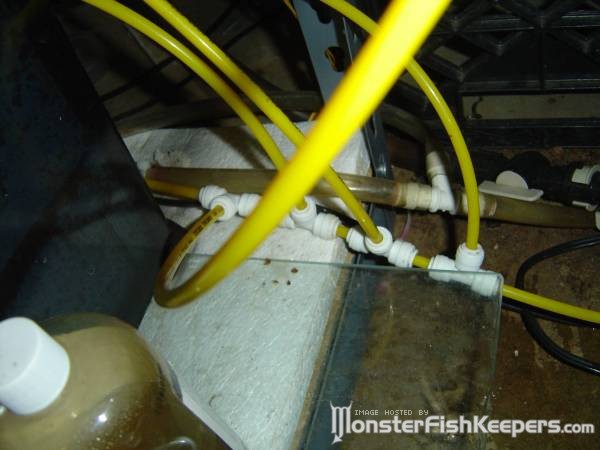

New water to the tanks :

The flow valve :

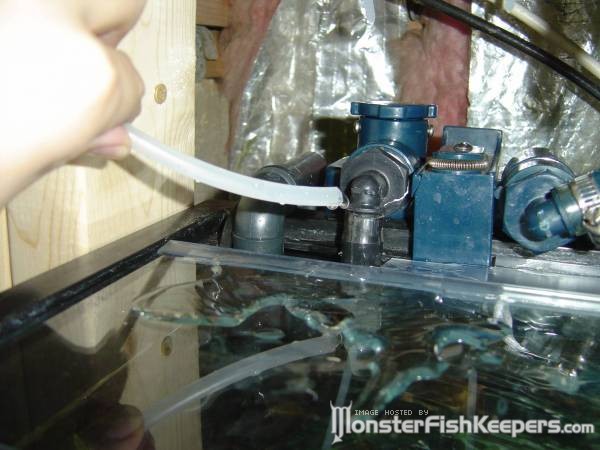

The drip :

----- Install the over flow----

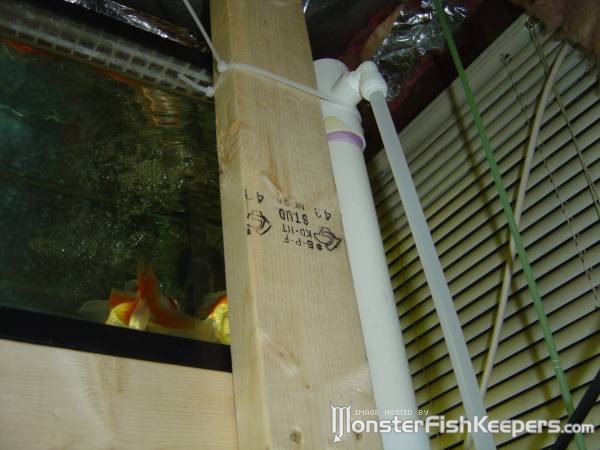

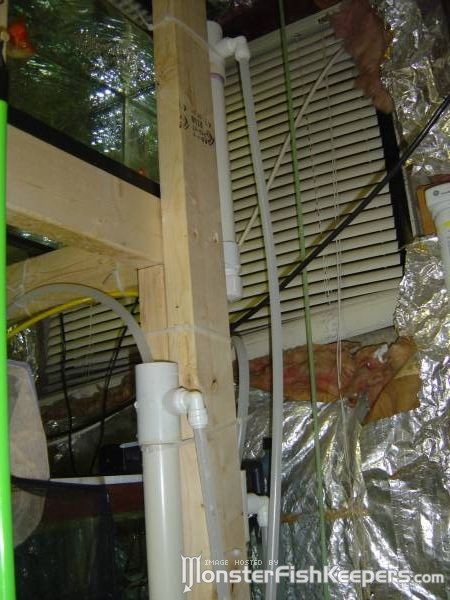

I use zip ties to secure it to the pole :

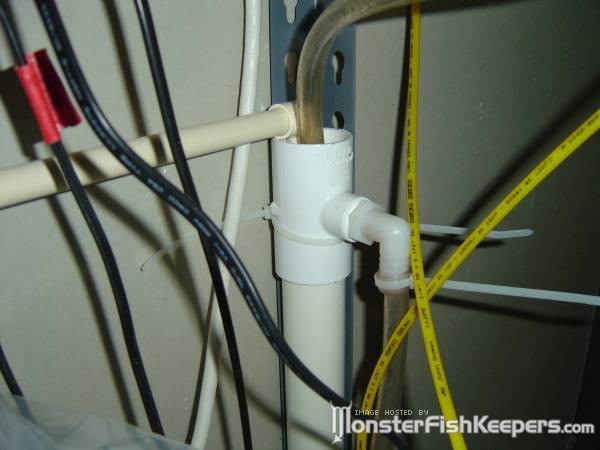

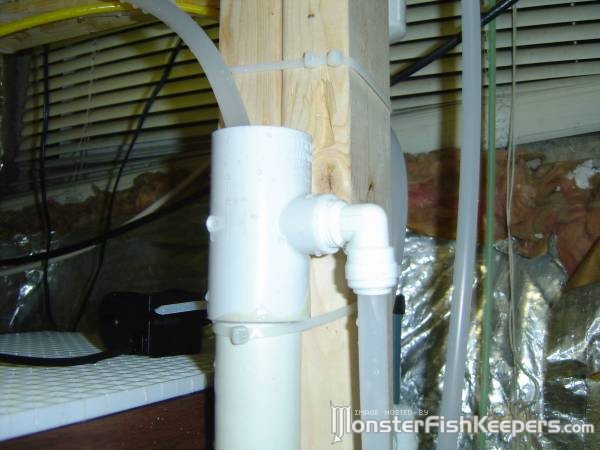

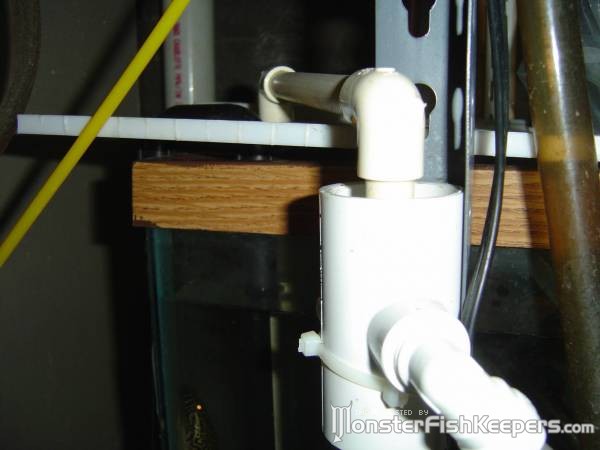

The level of the PVC pipe to the right controls the level of water in the tank. Make sure you line up the pipe with the desired water level in the tank correctly :

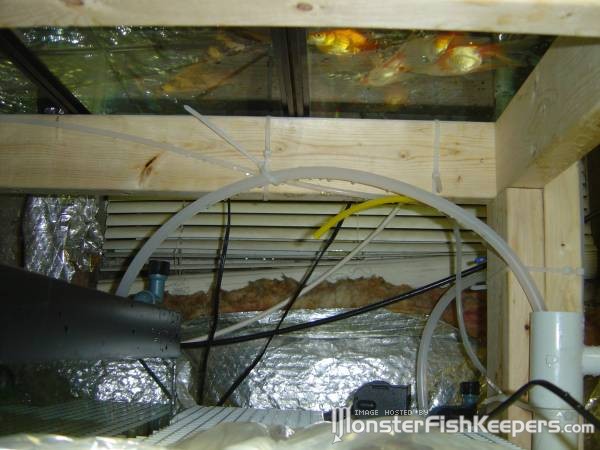

You see the vinyl pipe from the tank to the overflow?

If you have time you can use pvc piping instead :

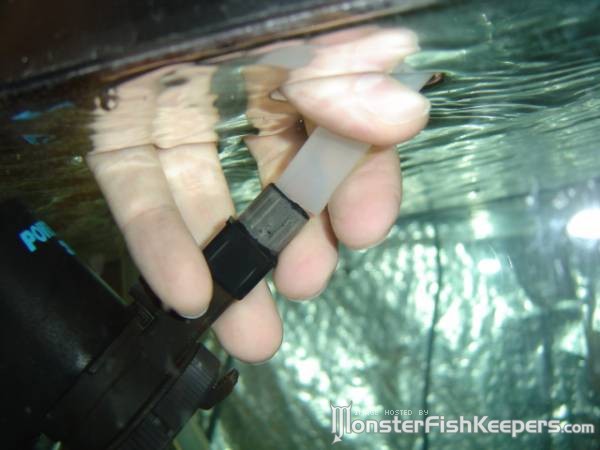

To start the siphon process I use a pump to quick start it. Pump the water until it starts to flow out of the tube.

This Setup Drains to the Sink :

My other setup is set to drain to the AC draining system :


neoprodigy is offline   Reply With Quote
Old 11-08-2006, 04:42 PM   #2
Aquarium Advice Addict
BrianNY's Avatar
Join Date: Sep 2003
Location: NY
Posts: 4,535
I'm very impressed. I do quite a few water changes myself. How many gallons/day is your system handling?

BrianNY is offline   Reply With Quote
Old 11-09-2006, 02:03 PM   #3
AA Team Emeritus
roka64's Avatar
Join Date: Mar 2006
Posts: 13,860
Send a message via AIM to roka64 Send a message via Yahoo to roka64
That is awesome! Great job and thanks for sharing!
Age is relative, you are only as old as you act....of course, this works in reverse....

Questions loved, heeded advice greatly appreciated!

Vote for AA
Good reading about:
Nitrogen Cycle
Fishless Cycling
Need more help?
Acronym List

roka64 is offline   Reply With Quote
Old 11-09-2006, 07:24 PM   #4
Aquarium Advice Freak
Join Date: Oct 2006
Posts: 328
Hey, how many gallons is the aged water tank?
Also, do you keep the water tank heated?
Whats a drill tank?
Great looking btw.
75 Gallon
Rena FilStar xP3, Aquarium Systems Visi-Therm 200W (2), Coralife 48" Aqualight 260W 6700K
10 Gallon Hexagon
Hagen AquaClear 30, Visi-Therm Deluxe 50, DIY CF 20W 6500K CF, Hagen Natural CO2 System :: Bloodfin Tetra (1), Red-eye Tetra (3), Black Skirt Tetra (3), Harlequin Rasbora (6), Platy (1), Otocinclus Catfish (1) :: Rotala Indica, Hygrophila Difformis (Wisteria), Cabomba Carolinia
tropicalfish is offline   Reply With Quote
