Old 08-09-2011, 04:01 PM   #1
Aquarium Advice Apprentice

Join Date: Jul 2011
Location: Mississippian stuck in Seattle
Posts: 15
LED Lights

When I got my new tank I decided I wanted to do some sort of LED lighting. After lot of research I noticed that no one had done it with a basic socket and retro LED. It seems to be a lot for compact fluorescent but nothing for LED. I got 25 sockets and 15 dimmable LED's on ebay for $50 shipped. Here is my attempt at LEDs.

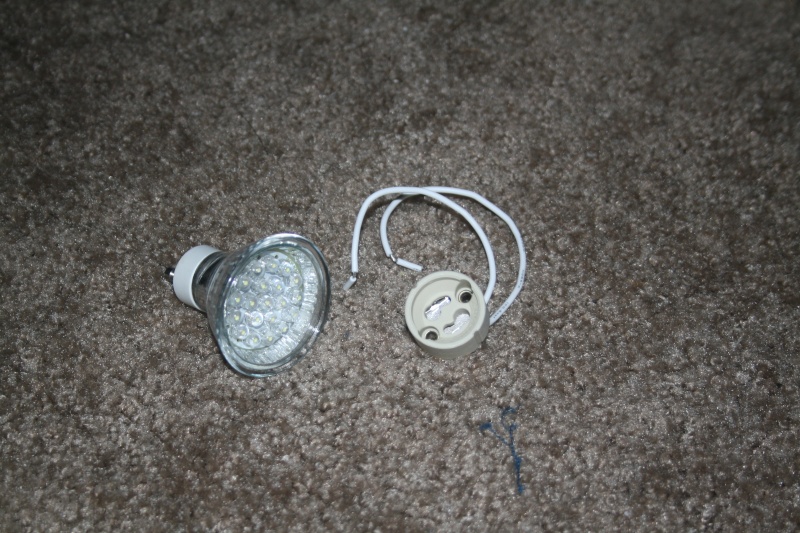

GU10 socket and LED bulb

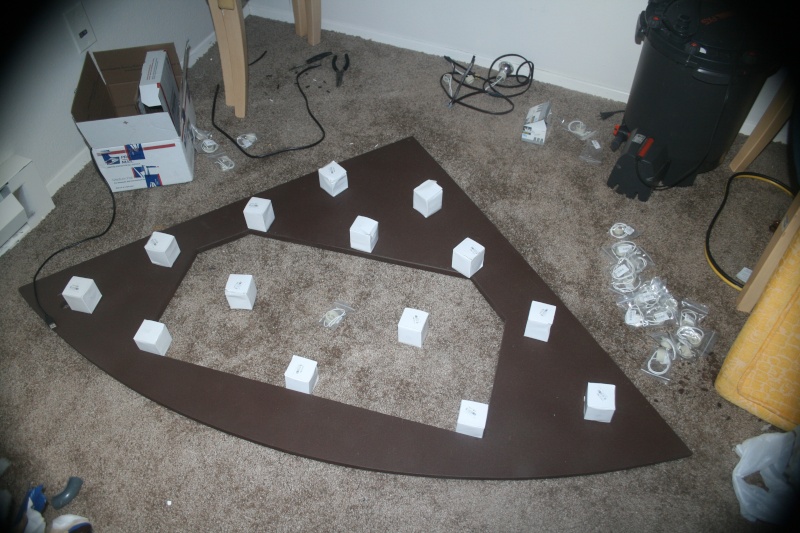

Basic Layout

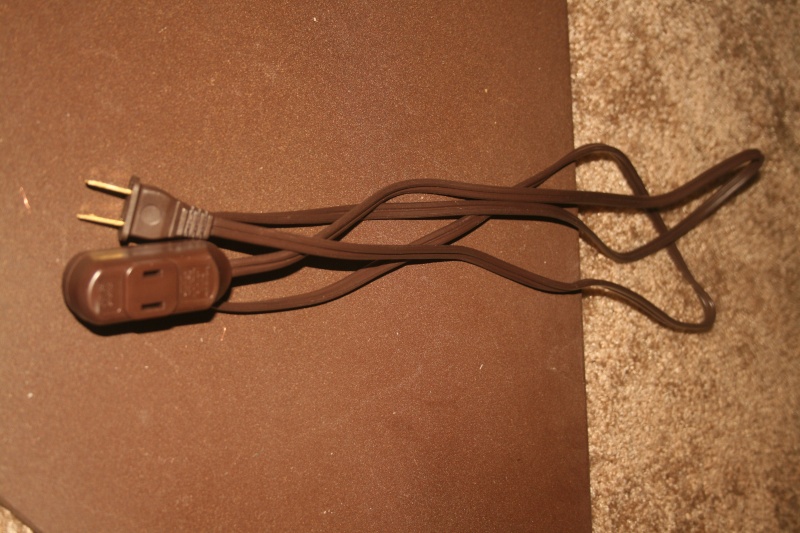

Standard extension cord, get extras they will be needed to string lights.

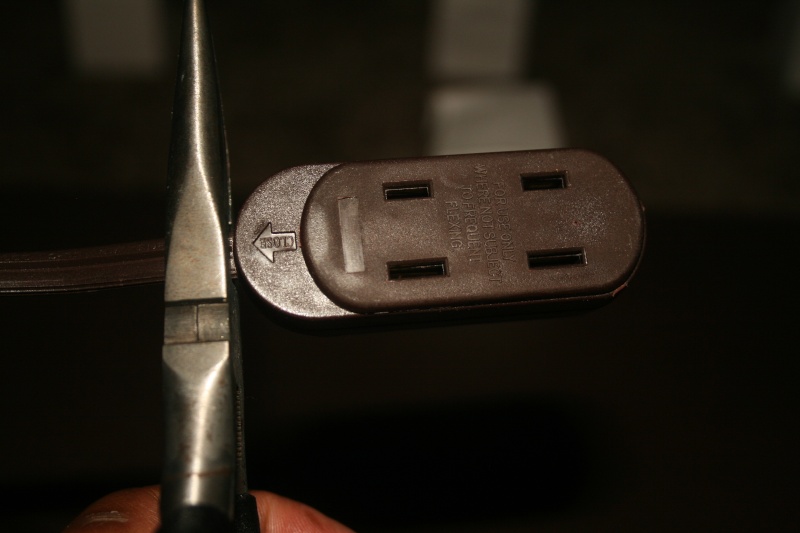

Remove female (socket) from the cord.



After socket is removed strip wire and attach socket with wire nut.

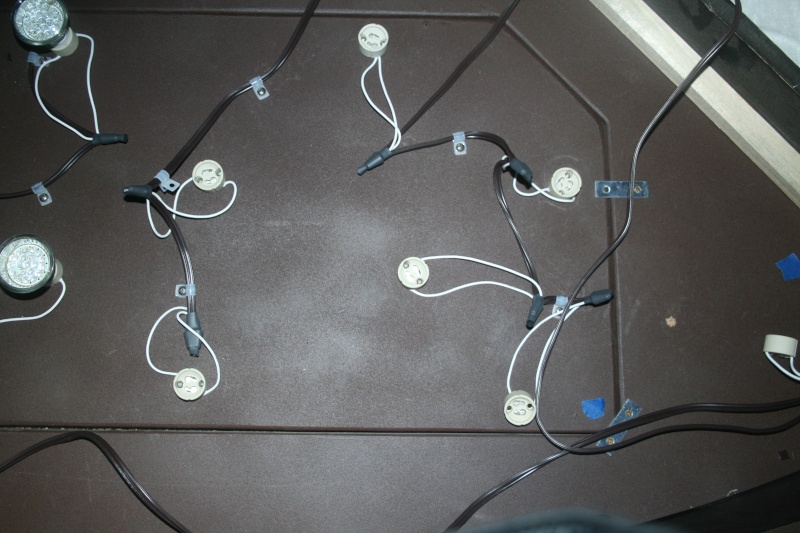

When running lights in a string add additional wire so that you can go to next light.




The socket has small holes for screws that I drilled right into the hood.





Test test test. I had one faulty wire thought I was going to blow up my house.

The lights are working, now working on sunrise sunset dimmer. The tank is dry but will take picture of it tonight when it is dark.
__________________

__________________
TerenceH is offline   Reply With Quote
Old 08-09-2011, 04:04 PM   #2
Aquarium Advice Addict

slitherbomb's Avatar

Join Date: May 2011
Location: Miami Beach, FL
Posts: 2,191
I really want to see that picture with it all on.
__________________

__________________
Lalala
slitherbomb is offline   Reply With Quote
Old 08-10-2011, 12:33 AM   #3
Aquarium Advice Freak

KreativJustin's Avatar

Join Date: Jul 2011
Location: North East, Indiana
Posts: 216
I've thought of doing something like this when I build my canopy. I'd go with a slightly different setup as mine would be square, and a slightly different fashion of sockets (out of personal preference).

I would like to know how this effects your heating after a few hours of running. Please reply with that information if you could.
__________________
55gal Beginner FOWLR - 40lb Live Rock, 1 True Percula, 1 Sand Sifting CUC, 1 Scooter Blenny, 1 Sally LF Crab, 2 Turbo Snails, Frag Brain Coral, Tree Coral Frag, Zoanthid Colony
KreativJustin is offline   Reply With Quote
Old 08-10-2011, 02:19 AM   #4
Aquarium Advice Apprentice

Join Date: Jul 2011
Location: Mississippian stuck in Seattle
Posts: 15
Quote:
Originally Posted by KreativJustin View Post
I've thought of doing something like this when I build my canopy. I'd go with a slightly different setup as mine would be square, and a slightly different fashion of sockets (out of personal preference).

I would like to know how this effects your heating after a few hours of running. Please reply with that information if you could.
I chose the sockets because of my height restrictions. If I were to do it again I would make a few changes myself. I would make the wiring a lot cleaner.

I have had them running for a hours now and there is no heat transfer to the tank. I can actually touch the bulb itself. It is slightly warm but that is it.
__________________
TerenceH is offline   Reply With Quote
Old 08-12-2011, 12:42 AM   #5
Aquarium Advice Freak

KreativJustin's Avatar

Join Date: Jul 2011
Location: North East, Indiana
Posts: 216
Well that's a good note about the heat. I might go with those then, I'll be building a custom canopy, so you won't be able to see that.

I'll be making a rectangle box of wood (minus the bottom of course) and they will be hidden within the rectangle. I was thinking of putting acrylic or plexiglass at the bottom and making an entryway through the front of the rectangle.

I can picture it :P hopefully you can too. This canopy/stand project won't be started for another month or so, so I get a lot of time to plan it.
__________________
55gal Beginner FOWLR - 40lb Live Rock, 1 True Percula, 1 Sand Sifting CUC, 1 Scooter Blenny, 1 Sally LF Crab, 2 Turbo Snails, Frag Brain Coral, Tree Coral Frag, Zoanthid Colony
KreativJustin is offline   Reply With Quote
Old 08-12-2011, 02:08 AM   #6
Aquarium Advice Activist

Join Date: Apr 2011
Location: Grand Junction, CO
Posts: 150
Send a message via Skype™ to ldaniel
The canopy looks good. what is the color temp of the LED's that you got? Are you growing any live plants in the tank?
A picture of it running would be grand!
__________________
ldaniel is offline   Reply With Quote
Old 08-14-2011, 12:46 PM   #7
Aquarium Advice Addict

Smitty's Avatar

Join Date: Nov 2008
Location: Gainesville, FL
Posts: 1,206
Is this for FW or SW? I've been following similar builds for a while now.

Also, how deep is your tank? I've heard these can be great for up to 55g tanks, but deeper tanks take a big hit with the light penetration.
__________________
Smitty is offline   Reply With Quote
Old 08-14-2011, 06:41 PM   #8
Aquarium Advice Freak

KreativJustin's Avatar

Join Date: Jul 2011
Location: North East, Indiana
Posts: 216
Quote:
Originally Posted by Smitty View Post
Is this for FW or SW? I've been following similar builds for a while now.

Also, how deep is your tank? I've heard these can be great for up to 55g tanks, but deeper tanks take a big hit with the light penetration.
Which light bulb(s) did you eventually use... I'm just curious.
__________________
55gal Beginner FOWLR - 40lb Live Rock, 1 True Percula, 1 Sand Sifting CUC, 1 Scooter Blenny, 1 Sally LF Crab, 2 Turbo Snails, Frag Brain Coral, Tree Coral Frag, Zoanthid Colony
KreativJustin is offline   Reply With Quote
Old 08-14-2011, 06:45 PM   #9
Aquarium Advice Addict

Smitty's Avatar

Join Date: Nov 2008
Location: Gainesville, FL
Posts: 1,206
I haven't gone to LED. I'm still using T5HO bulbs. I've been following the threads but since all them them I've seen pretty much said they wouldn't work for deeper tanks I haven't gotten any.
__________________
Smitty is offline   Reply With Quote
Old 08-14-2011, 09:31 PM   #10
Aquarium Advice Freak

KreativJustin's Avatar

Join Date: Jul 2011
Location: North East, Indiana
Posts: 216
Quote:
Originally Posted by Smitty View Post
I haven't gone to LED. I'm still using T5HO bulbs. I've been following the threads but since all them them I've seen pretty much said they wouldn't work for deeper tanks I haven't gotten any.
Ahh, well that depends on the tank your going to use. If your using T5HO's you should be pretty well off. Why are you wanting to switch, the T5's have very nice output, especially CoraLife bulbs.
__________________

__________________
55gal Beginner FOWLR - 40lb Live Rock, 1 True Percula, 1 Sand Sifting CUC, 1 Scooter Blenny, 1 Sally LF Crab, 2 Turbo Snails, Frag Brain Coral, Tree Coral Frag, Zoanthid Colony
KreativJustin is offline   Reply With Quote
